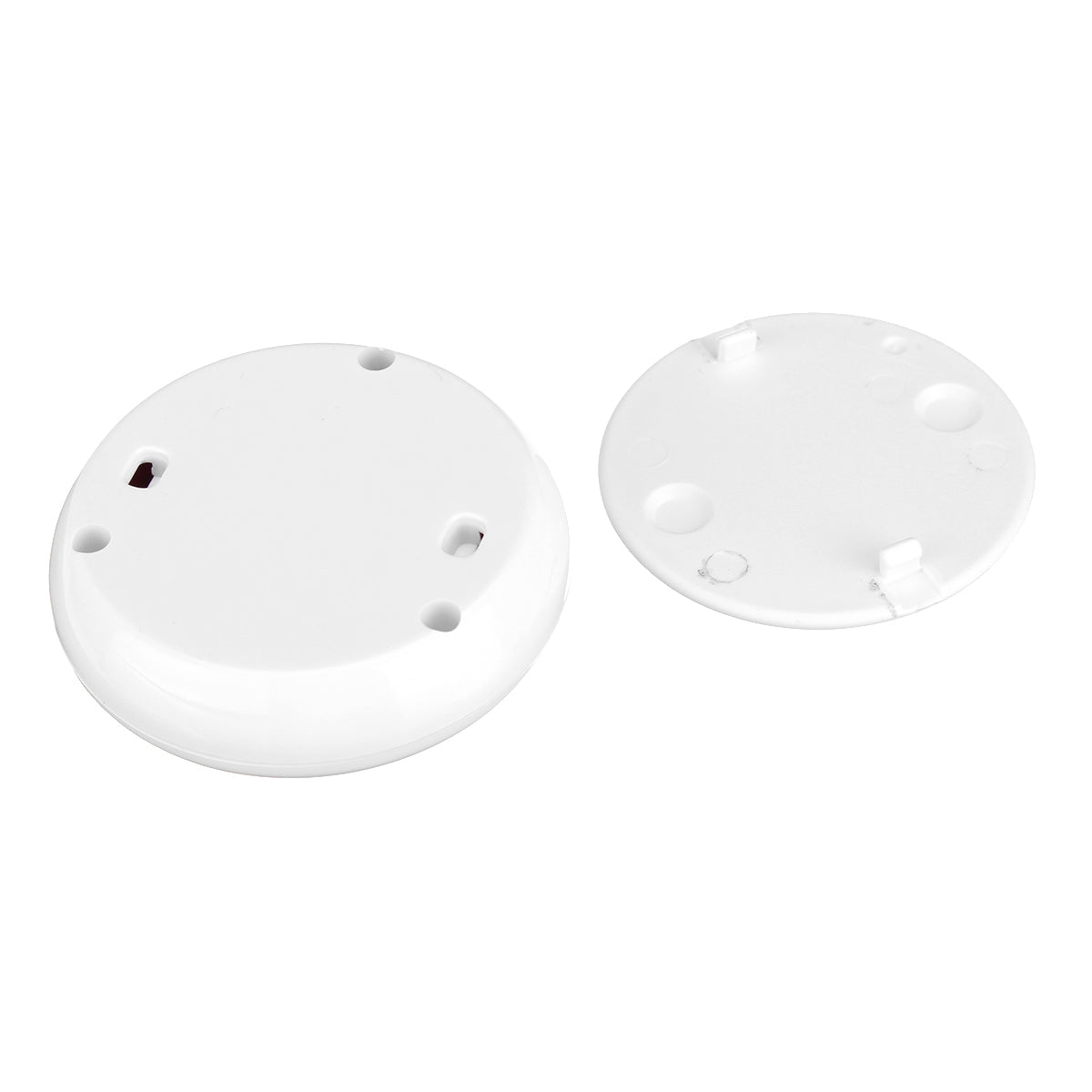

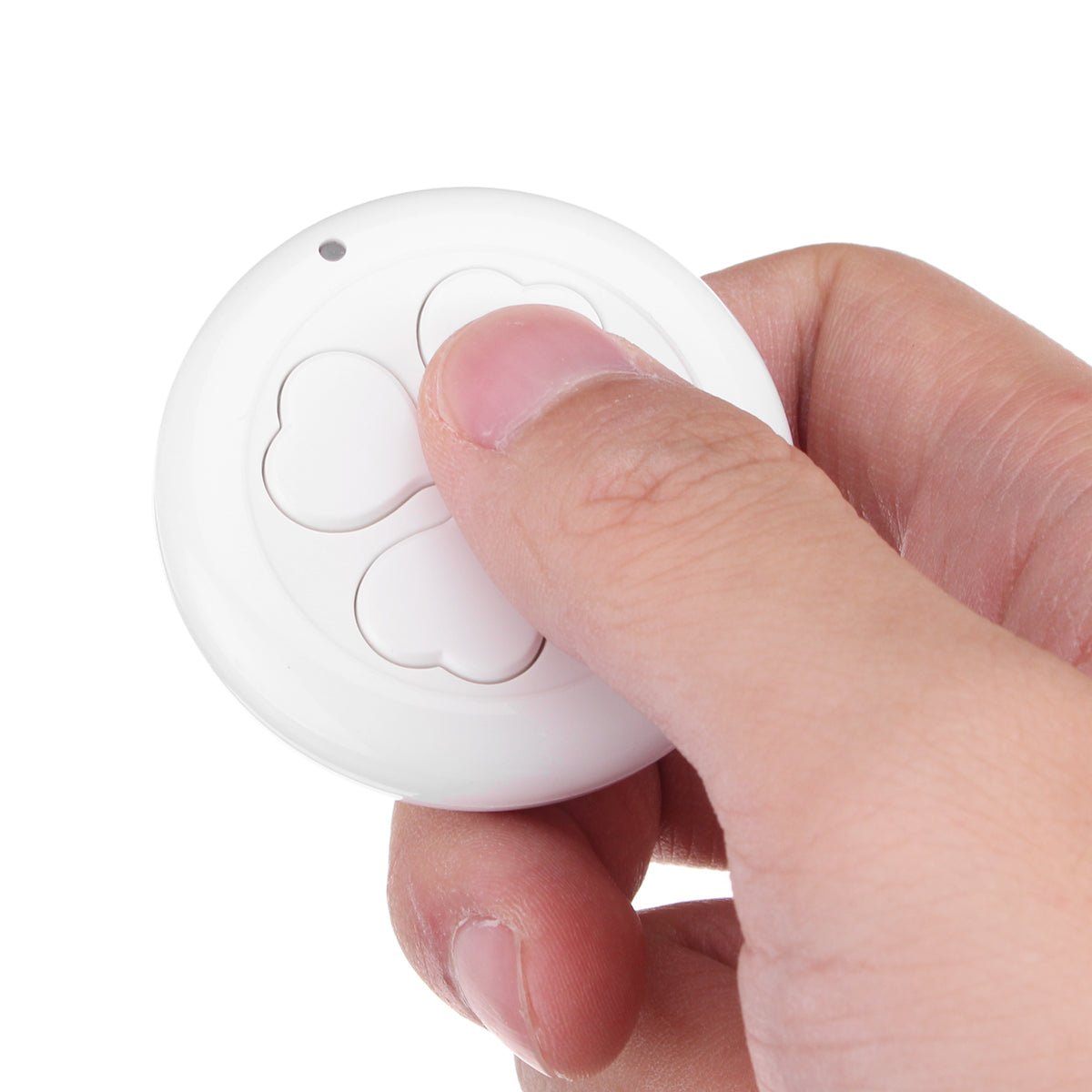

Working voltage: DC6V (2016 3V*2 battery)
Working frequency: 315, 433.92MHz (other frequencies can be customized)
Standby current: 0mA
Working current: 16mA
Coding method:learning code (1527 chip)
Transmission distance: 10-30m (opening receiver sensitivity is above -103dBm)
Output power: 9dBm (8mW)
Transmission rate: <10Kbps
Modulation method: ASK (amplitude modulation)
Working temperature: -10℃~+70℃
Number of buttons: 2 buttons
Button: AB button, switch pattern

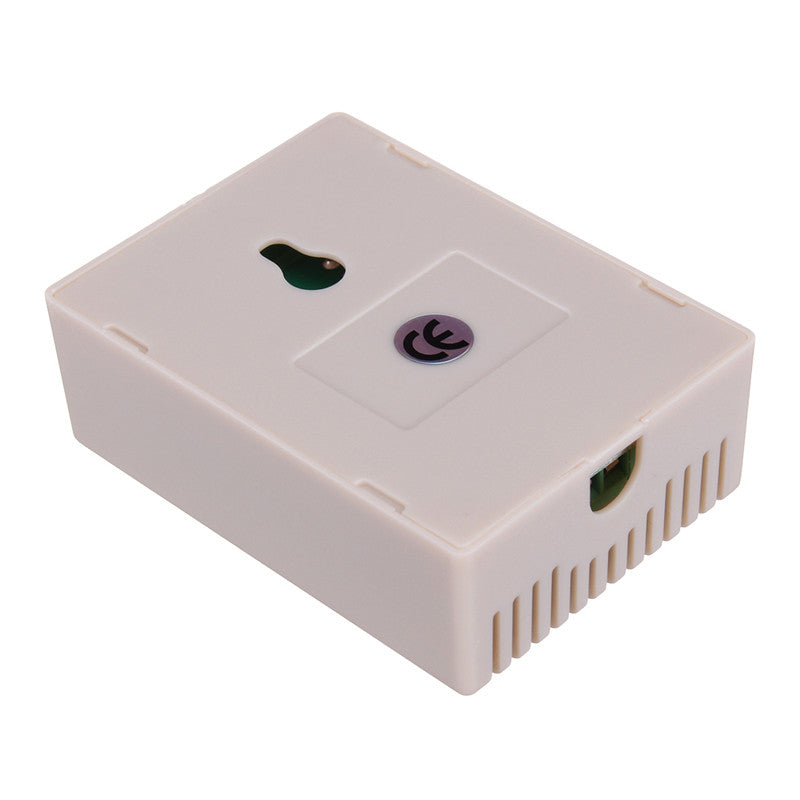

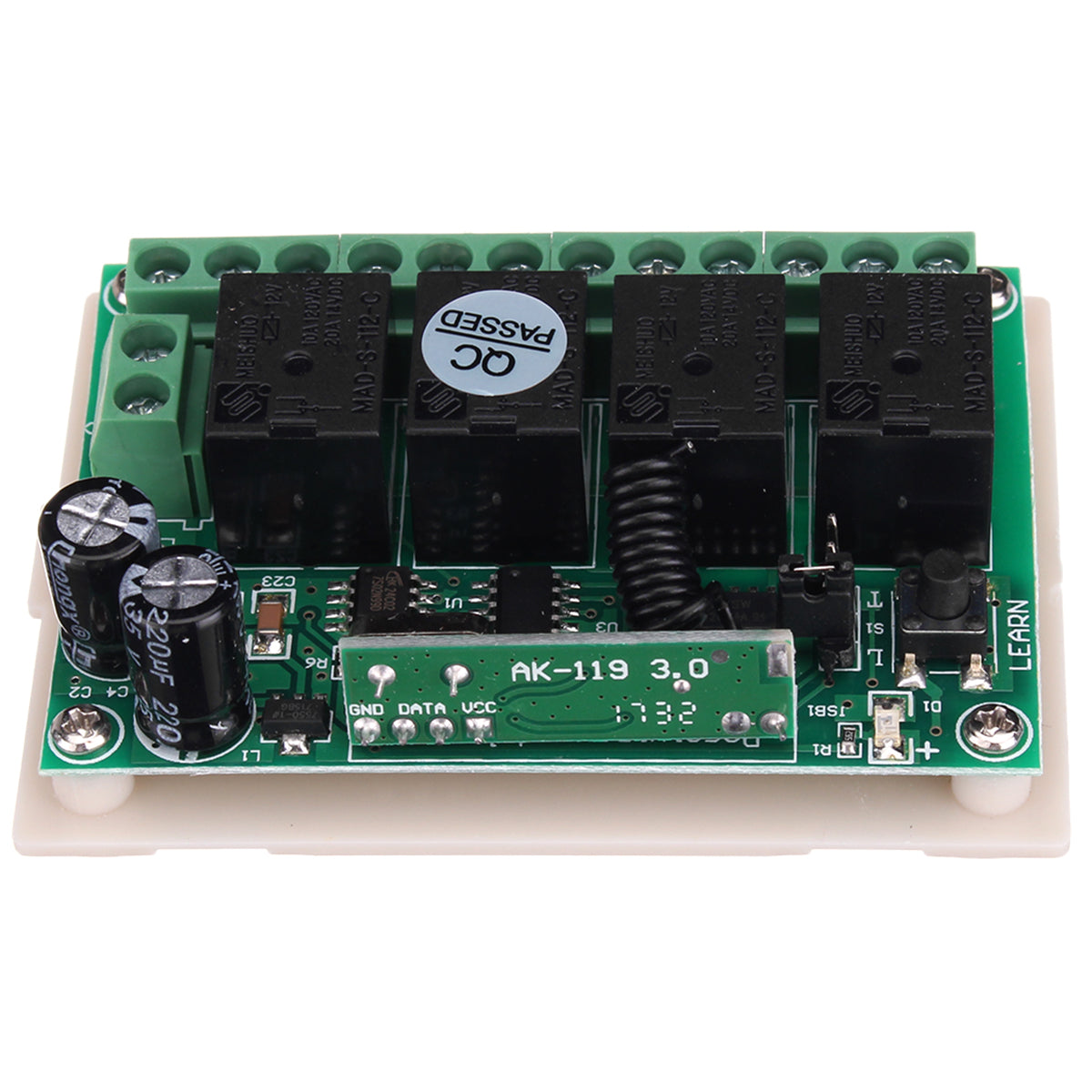

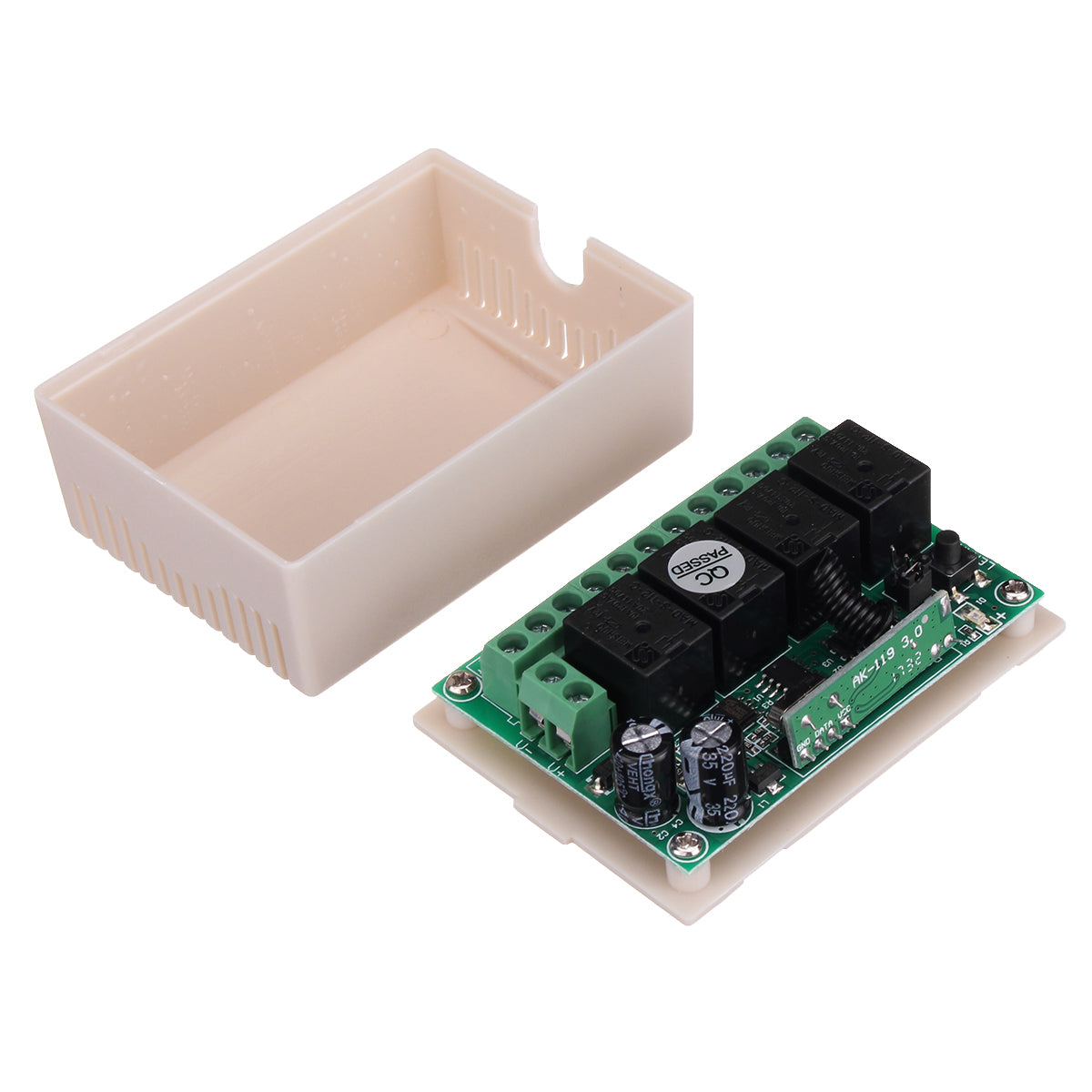

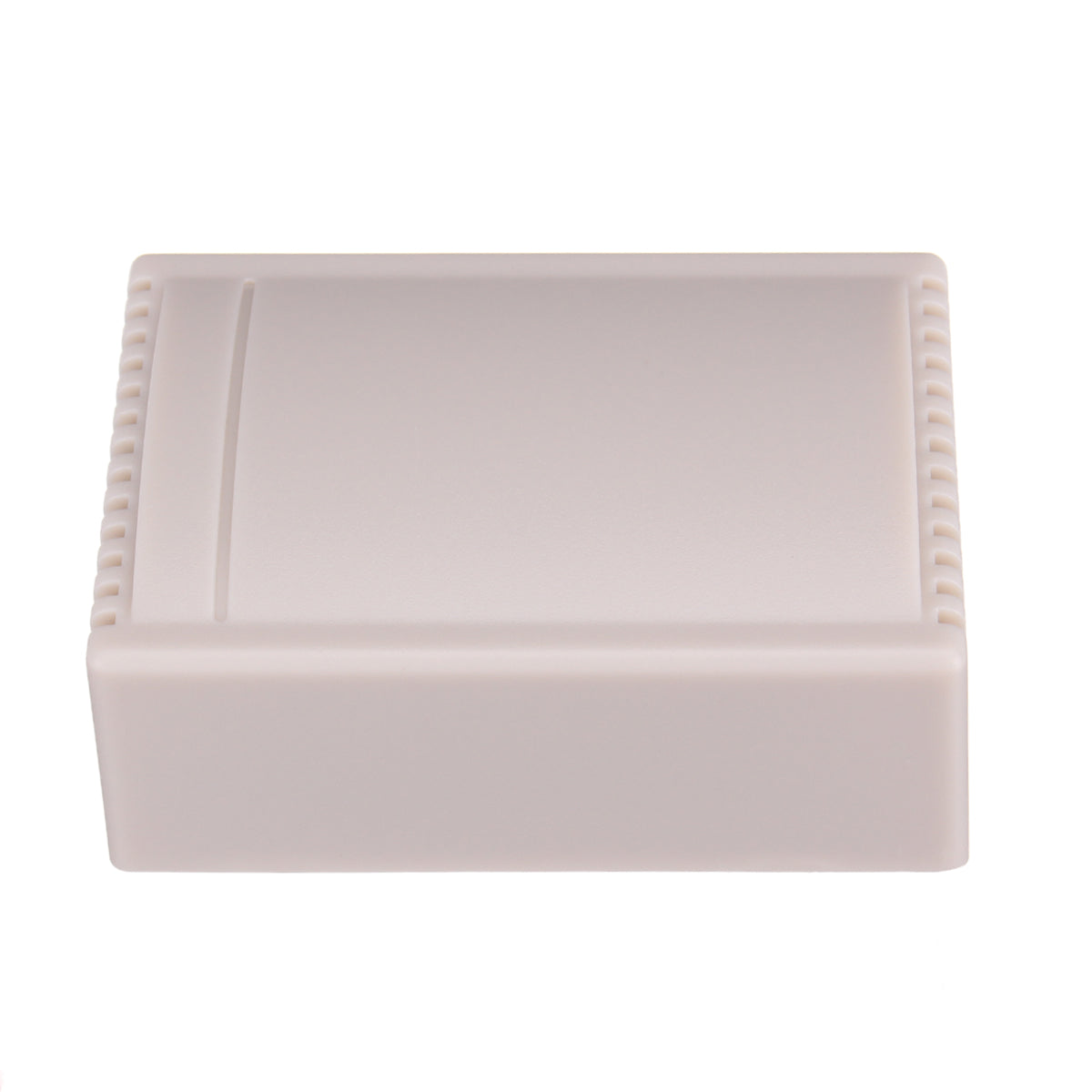

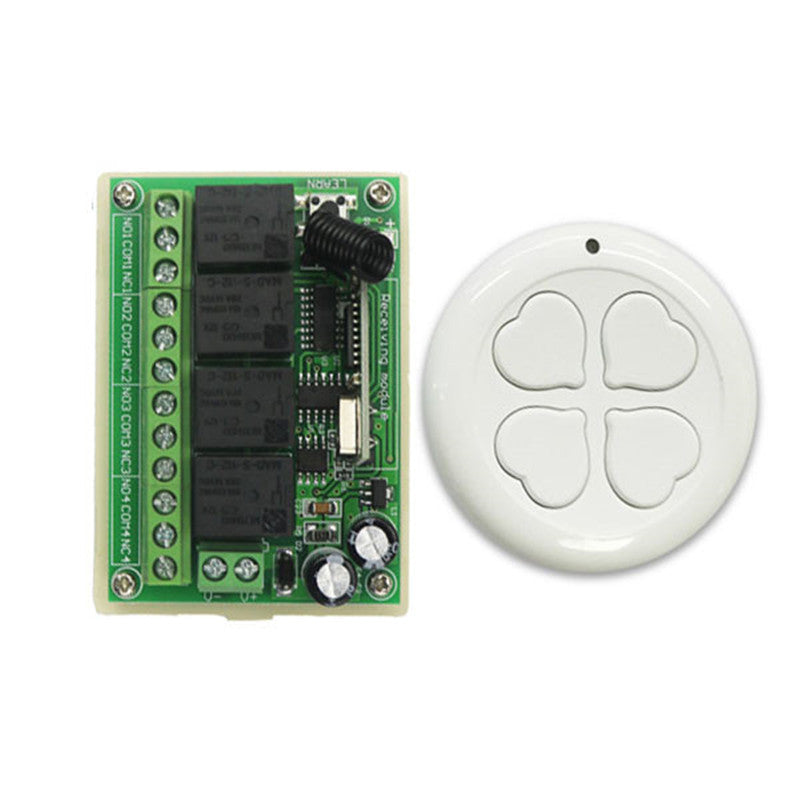

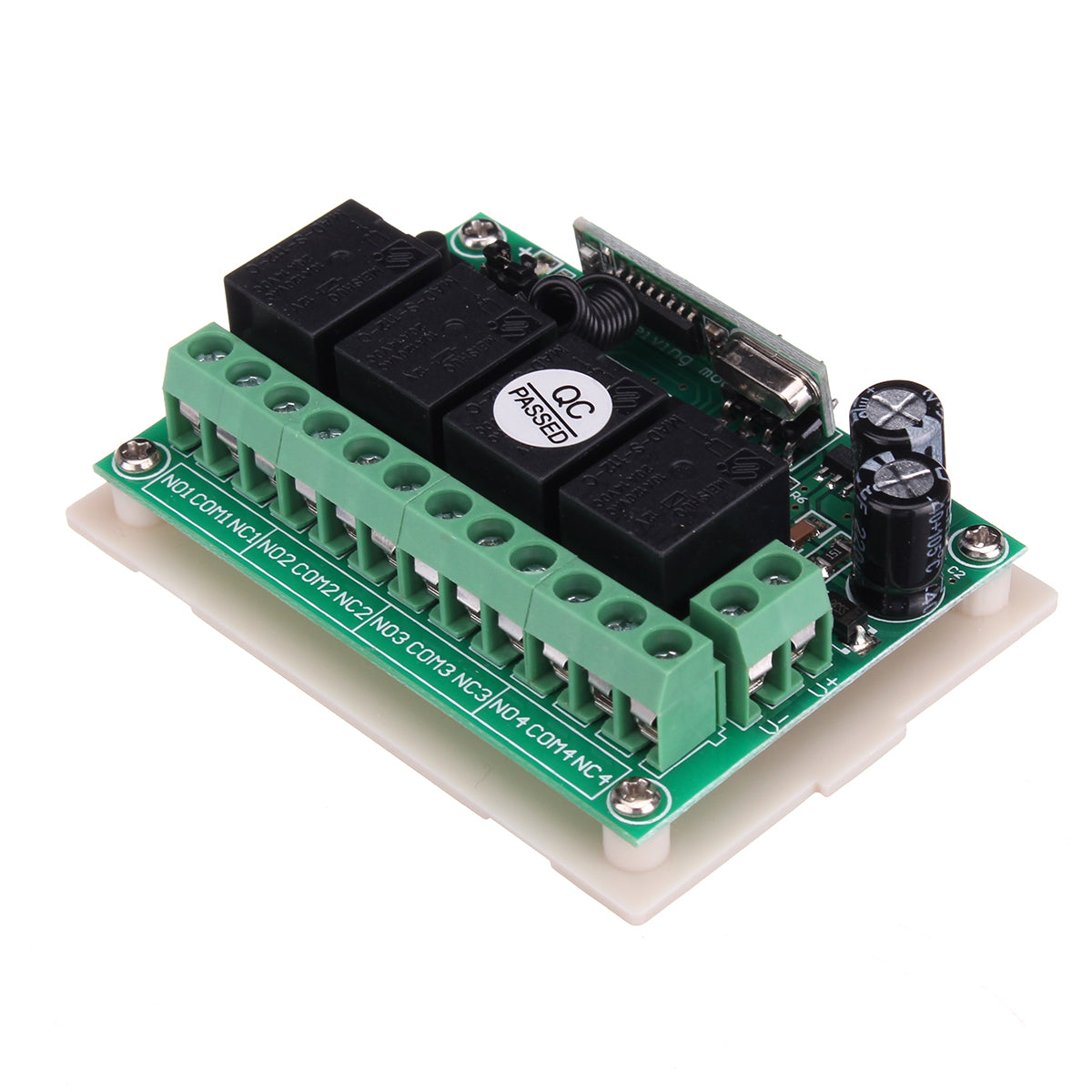

Working voltage: DC3.7-12V
Working current: 30mA
Quiescent current: 7mA
Operating frequency: 315MHz (default shipment), 433MHz (optional)
Chip type: learning code.
Mode:Jog, self-locking, interlock mode.
-High-voltage isolation, low-voltage part will not hurt you.
-Durable,its life is generally several times longer than others.
-Small size and exquisite appearance.
-The sound table is stable in frequency and stable in performance.
-Having variety of frequency points, it is cost-effective.
-Applications: remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products.
