Specification:Supporting Pin Size: Approx. 160x100mm / 6.30x3.94"
Washer Size: Approx. 50x11mm / 1.97x0.43"
Features:- Suitable for concealed mounting of shelves, beams, mantels, wall art, fire surrounds, radiator screens, telephone supports and all domestic applications.
- Installation of brackets are suitable for solid walls and stud walls.
Installation:1. Drill Ø10 mm hole and insert wall plug.
2. Slip washer (supplied) onto screw thread.
3. Screw shelf support into wall plug.
4. Install shelf on support as far as the knurled section.
5. Use an SW 10 open-ended wrench for vertical adjustment.
6. Finally push the shelf all the way to the wall.
Package Included:8 x Supporting Screw Pins

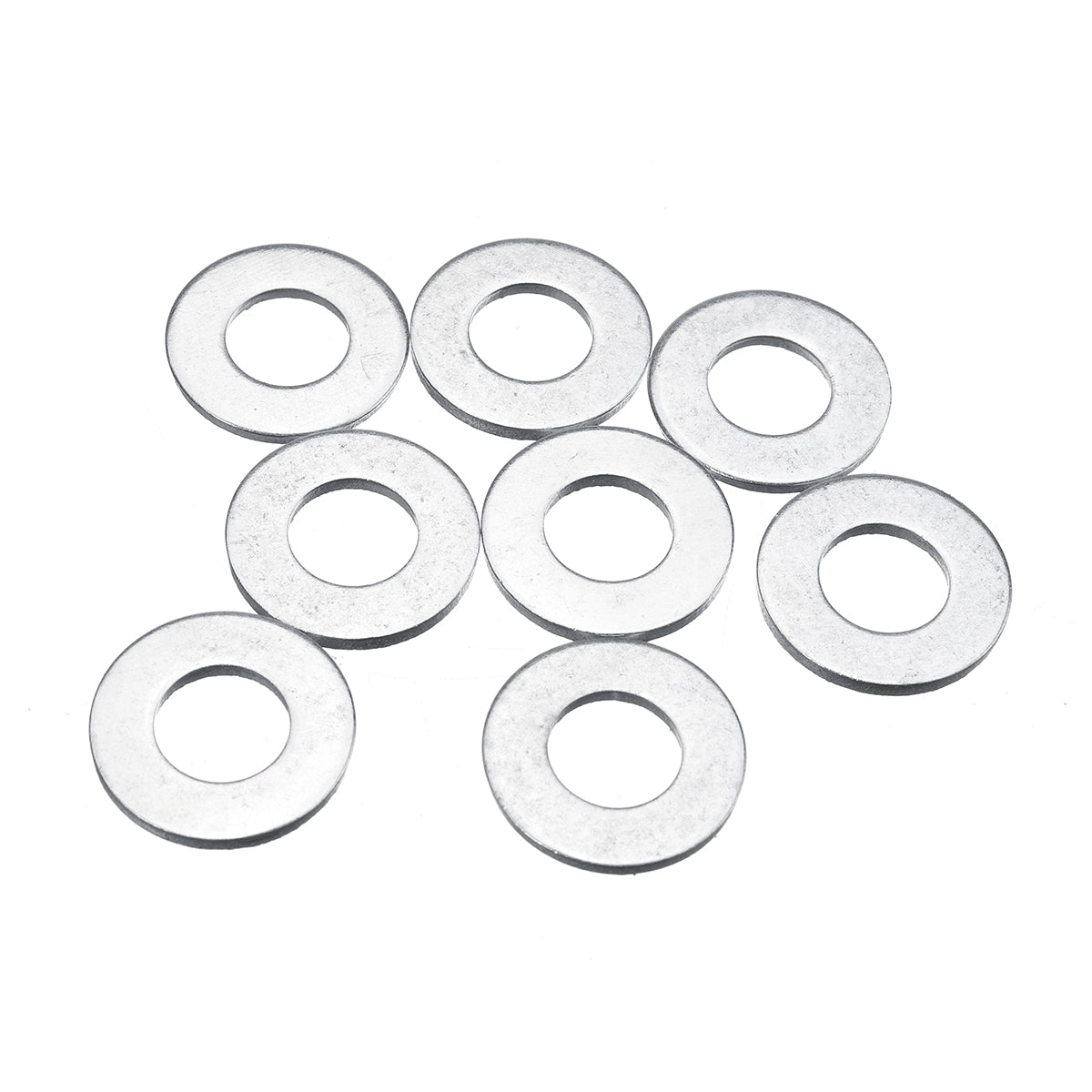

8 x Washers
8 x Wall Plugs
